G.24 congruent triangles by SAS

I.4

Triangles with two sides and the included angle equal are congruent (SAS).
sas_congruence(< A B C >, < D E F >)
given < A B C >, < D E F >, / A B / = / D E /, / A C / = / D F /, < B A C ) = < E D F )
prove / B C / = / E F /, < A B C > = < D E F >, < A B C ) = < D E F ), < A C B ) = < D F E )
A B C D E F
given < A B C >, < D E F >, / A B / = / D E /, / A C / = / D F /, < B A C ) = < E D F )
assert A ≃ D, / A B / = / D E / → B ≃ E
assert < B A C ) = < E D F ), / A C / = / D F / → / A C / ≃ / D F /, C ≃ F
∵ coinciding_equalassert B ≃ E, C ≃ F → / B C / ≃ / E F / → / B C / = / E F /
∵ coinciding_equal∴ < A B C > ≃ < D E F > → < A B C > = < D E F >, < A B C ) = < D E F ), < A C B ) = < D F E )

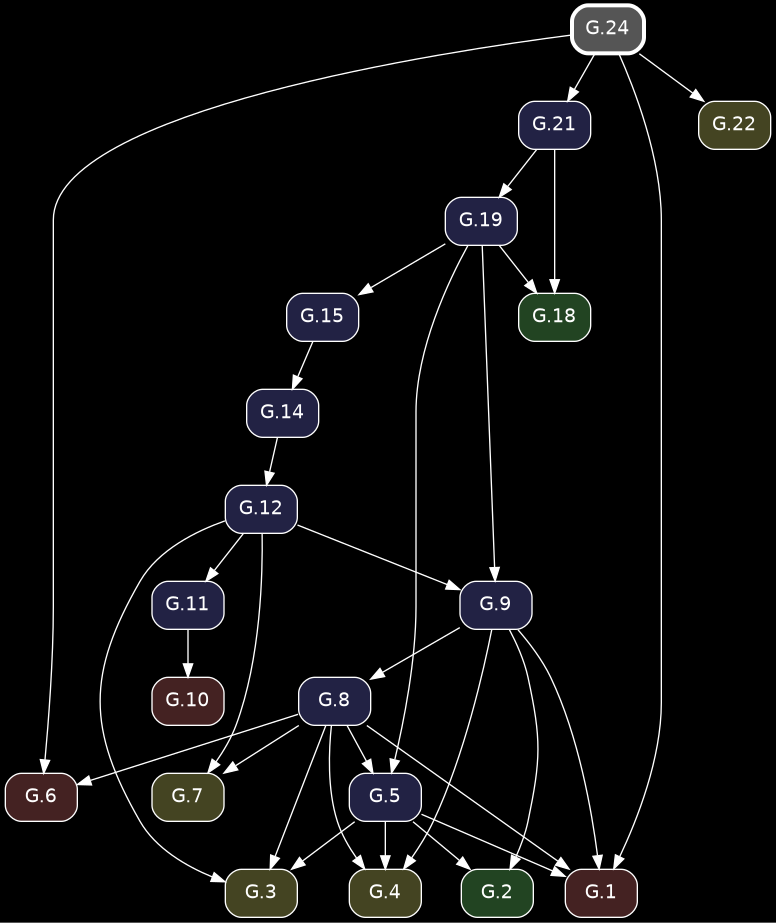

Dependency Graph

digraph { bgcolor="transparent"; node [shape=box, style="rounded,filled", fontname="Helvetica", fontsize=11, color="#d6d3cd", fontcolor="#ffffff"]; edge [color="#8c857b", fontcolor="#8c857b", arrowsize=0.75]; rankdir="TB"; "G.1" [label="G.1", tooltip="G.1 (I.def.1): A point A is that which has no part.", fillcolor="#224422", URL="../G.1/index.html", target="_top"]; "G.2" [label="G.2", tooltip="G.2 (I.def.2): A line [ A B ] is a projection of a relationship of two points A, B.", fillcolor="#224422", URL="../G.2/index.html", target="_top"]; "G.3" [label="G.3", tooltip="G.3 (I.def.3): The extremities of a segment / A B / are points A, B.", fillcolor="#224422", URL="../G.3/index.html", target="_top"]; "G.4" [label="G.4", tooltip="G.4 (I.def.4): A segment / A B / is a portion of a line [ A B ] between two points A, B on the line.", fillcolor="#224422", URL="../G.4/index.html", target="_top"]; "G.5" [label="G.5", tooltip="G.5 (I.def.5): A surface is that which has length and breadth only.", fillcolor="#224422", URL="../G.5/index.html", target="_top"]; "G.7" [label="G.7", tooltip="G.7 (I.def.7): A plane surface lies evenly with the lines on itself.", fillcolor="#224422", URL="../G.7/index.html", target="_top"]; "G.8" [label="G.8", tooltip="G.8 (I.def.13): A boundary is the extremity of anything.", fillcolor="#224422", URL="../G.8/index.html", target="_top"]; "G.9" [label="G.9", tooltip="G.9 (I.def.14): A figure is that which is contained by any boundary or boundaries.", fillcolor="#224422", URL="../G.9/index.html", target="_top"]; "G.12" [label="G.12", tooltip="G.12 (I.def.19): Rectilineal figures are contained by segments: trilateral by three, quadrilateral by four, and multilateral by more than four.", fillcolor="#224422", URL="../G.12/index.html", target="_top"]; "G.22" [label="G.22", tooltip="G.22 (I.def.8): A plane angle is the inclination to one another of two lines or arcs in a plane that meet and do not lie on the same line.", fillcolor="#224422", URL="../G.22/index.html", target="_top"]; "G.23" [label="G.23", tooltip="G.23 (I.cn.4): Things / A B /, / D E / that coincide with one another are equal to one another.", fillcolor="#442222", URL="../G.23/index.html", target="_top"]; "G.24" [label="G.24", tooltip="G.24 (I.4): Triangles with two sides and the included angle equal are congruent (SAS).", penwidth=2.5, color="#e8b85a", fillcolor="#4a453b", URL="index.html", target="_top"]; "G.2" -> "G.1"; "G.3" -> "G.1"; "G.4" -> "G.1"; "G.24" -> "G.1"; "G.3" -> "G.2"; "G.4" -> "G.2"; "G.7" -> "G.2"; "G.22" -> "G.2"; "G.4" -> "G.3"; "G.8" -> "G.3"; "G.7" -> "G.4"; "G.12" -> "G.4"; "G.22" -> "G.4"; "G.24" -> "G.4"; "G.7" -> "G.5"; "G.22" -> "G.7"; "G.9" -> "G.8"; "G.12" -> "G.9"; "G.24" -> "G.12"; "G.24" -> "G.22"; "G.24" -> "G.23"; }

Required for

G.25, G.27, G.28, G.29, G.31, G.32, G.34, G.35, G.37, G.39, G.40, G.41, G.42, G.43, G.44, G.45, G.46, G.47, G.48, G.49, G.50, G.51, G.53, G.54, G.56, G.57, G.58, G.59, G.60, G.62, G.64, G.65, G.66, G.67, G.68, G.69, G.70, G.71, G.72, G.73, G.74, G.75, G.79, G.80, G.82, G.83, G.84, G.85, G.87, G.88, G.89, G.90, G.91, G.92, G.93, G.94, G.95, G.97, G.98, G.99, G.100, G.101, G.105, G.106, G.107, G.108, G.110, G.112, G.114, G.116, G.118, G.119, G.120, G.121, G.123, G.124, G.125, G.128, G.129, G.130, G.133, G.134, G.135, G.136, G.137, G.139, G.140, G.141, G.142, G.143, G.144, G.145, G.149, G.151, G.154, G.157, G.158, G.159, G.160, G.161, G.162, G.163, G.164, G.165, G.166, G.167, G.168, G.210, G.211, G.212, G.213, G.214, G.215, G.216, G.218, G.219, G.220, G.221, G.222, G.223, G.225, G.226, G.227, G.228, G.229, G.231, G.232, G.234, G.235, G.236, G.237, G.238, G.239, G.240, G.241, G.243, G.244, G.245, G.246, G.345, G.377, G.378, G.381, G.382, G.383, G.384, G.385, G.386, G.389, G.390, G.393, G.394, G.395, G.396, G.397, G.398, G.399, G.400, G.401, G.402, G.403, G.404, G.405, G.406, G.407, G.408, G.409, G.410, G.411, G.412, G.413, G.414, G.415, G.416, G.417, G.418, G.419, G.420, G.421, G.423, G.425, G.427, G.429, G.431, G.433, G.434, G.435, G.436, G.437, G.438, G.439, G.440, G.441, G.442, G.443, G.444, G.445, G.446, G.447, G.448, G.449, G.450, G.451, G.452, G.453, G.455, G.457, G.458, G.459, G.460, G.461, G.462, G.463, G.464, G.465, G.466, G.467, G.468, G.470, G.472, G.474, G.476, G.477, G.478, G.479, G.480, G.481, G.482, G.483, G.484, G.485, G.486, G.487, G.488, G.489, G.490, G.491, G.492, G.493, G.494, G.495, G.496, G.497, G.498, G.499, G.500, G.501, G.506, G.507, G.508, G.510, G.511, G.512, G.513, G.514, G.517, G.518, G.520, G.522, G.525, G.526, G.527, G.528, G.530, G.531, G.532, G.536, G.538, G.539, G.540, G.541, G.542, G.543, G.544, G.545, G.546, G.547, G.549, G.550, G.551, G.552, G.554, G.555, G.556, G.557, G.558, G.559, G.560, G.563, G.565, G.570, G.571, G.572, G.573, G.574, G.577, G.578, G.579, G.580, G.582, G.583, G.584, G.585, G.586, G.587, G.588, G.589, G.590, G.592, G.594, G.595, G.597, G.600, G.601
