Heath ID: I.19
G.28¶
In any triangle the greater angle is subtended by the greater side.
Let ABC be a triangle having the angle ABC greater than the angle BCA;
I say that the side AC is also greater than the side AB.
For, if not, AC is either equal to AB or less.
- Now
ACis not equal toAB; for then the angleABCwould also have been equal to the angleACB; [G.12] but it is not; therefore
ACis not equal toAB.
Neither is AC less than AB, for then the angle ABC would also have been less than the angle ACB; [G.27] but it is not; therefore AC is not less than AB.
And it was proved that it is not equal either. Therefore AC is greater than AB.
Therefore etc.
Q. E. D.

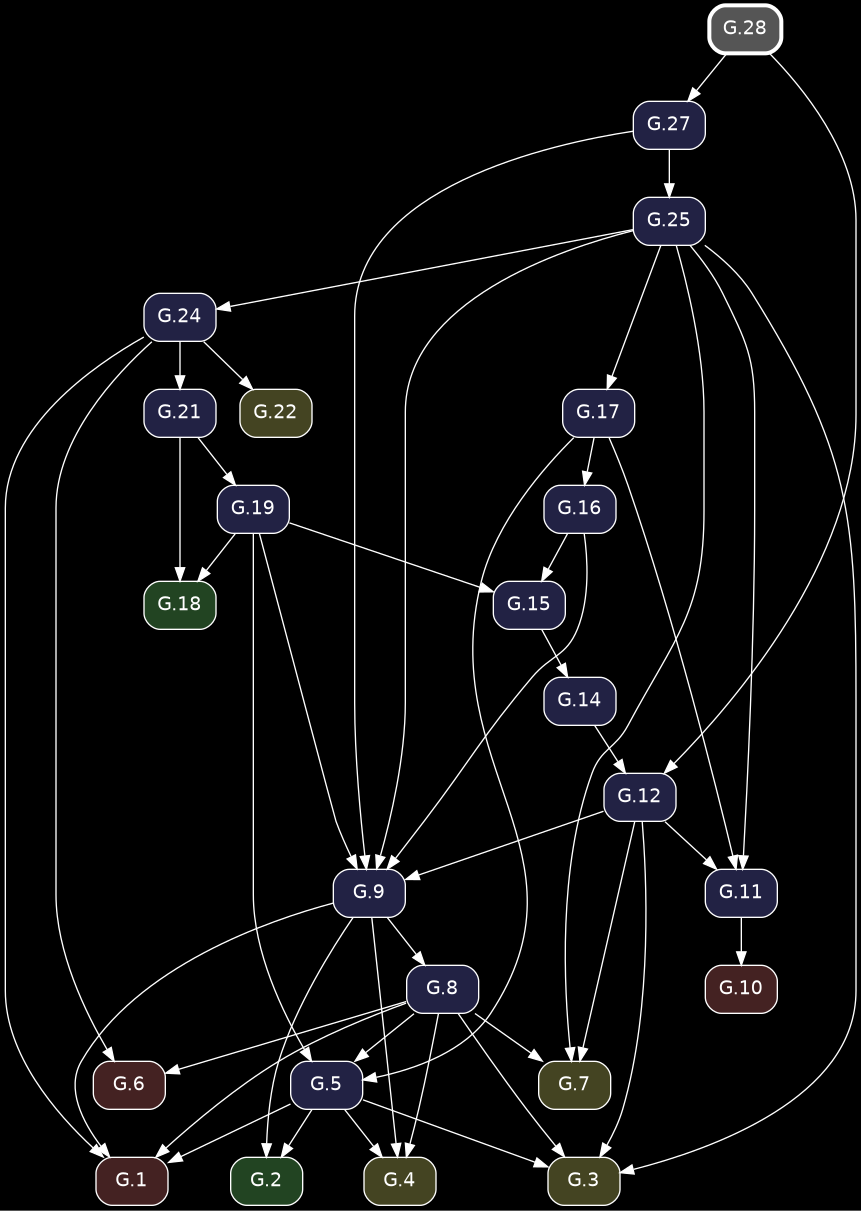

Dependency Graph¶
![digraph {
bgcolor="black";
node [shape=box, style="rounded,filled", fontname="Helvetica", color="white", fontcolor="white"];
edge [color="white", fontcolor="white"];
rankdir="TB";
"G.27" [label="G.27", fillcolor="#222244", URL="/elements2/G.27/", target="_top"];
"G.6" [label="G.6", fillcolor="#442222", URL="/elements2/G.6/", target="_top"];
"G.19" [label="G.19", fillcolor="#222244", URL="/elements2/G.19/", target="_top"];
"G.24" [label="G.24", fillcolor="#222244", URL="/elements2/G.24/", target="_top"];
"G.21" [label="G.21", fillcolor="#222244", URL="/elements2/G.21/", target="_top"];
"G.10" [label="G.10", fillcolor="#442222", URL="/elements2/G.10/", target="_top"];
"G.7" [label="G.7", fillcolor="#444422", URL="/elements2/G.7/", target="_top"];
"G.3" [label="G.3", fillcolor="#444422", URL="/elements2/G.3/", target="_top"];
"G.17" [label="G.17", fillcolor="#222244", URL="/elements2/G.17/", target="_top"];
"G.15" [label="G.15", fillcolor="#222244", URL="/elements2/G.15/", target="_top"];
"G.5" [label="G.5", fillcolor="#222244", URL="/elements2/G.5/", target="_top"];
"G.1" [label="G.1", fillcolor="#442222", URL="/elements2/G.1/", target="_top"];
"G.2" [label="G.2", fillcolor="#224422", URL="/elements2/G.2/", target="_top"];
"G.12" [label="G.12", fillcolor="#222244", URL="/elements2/G.12/", target="_top"];
"G.22" [label="G.22", fillcolor="#444422", URL="/elements2/G.22/", target="_top"];
"G.14" [label="G.14", fillcolor="#222244", URL="/elements2/G.14/", target="_top"];
"G.28" [label="G.28", penwidth=3, color="white", fillcolor="#555555", URL="/elements2/G.28/", target="_top"];
"G.8" [label="G.8", fillcolor="#222244", URL="/elements2/G.8/", target="_top"];
"G.9" [label="G.9", fillcolor="#222244", URL="/elements2/G.9/", target="_top"];
"G.25" [label="G.25", fillcolor="#222244", URL="/elements2/G.25/", target="_top"];
"G.18" [label="G.18", fillcolor="#224422", URL="/elements2/G.18/", target="_top"];
"G.11" [label="G.11", fillcolor="#222244", URL="/elements2/G.11/", target="_top"];
"G.4" [label="G.4", fillcolor="#444422", URL="/elements2/G.4/", target="_top"];
"G.16" [label="G.16", fillcolor="#222244", URL="/elements2/G.16/", target="_top"];
"G.28" -> "G.27";
"G.24" -> "G.6";
"G.8" -> "G.6";
"G.21" -> "G.19";
"G.25" -> "G.24";
"G.24" -> "G.21";
"G.11" -> "G.10";
"G.25" -> "G.7";
"G.8" -> "G.7";
"G.12" -> "G.7";
"G.5" -> "G.3";
"G.25" -> "G.3";
"G.8" -> "G.3";
"G.12" -> "G.3";
"G.25" -> "G.17";
"G.19" -> "G.15";
"G.16" -> "G.15";
"G.19" -> "G.5";
"G.8" -> "G.5";
"G.17" -> "G.5";
"G.5" -> "G.1";
"G.24" -> "G.1";
"G.8" -> "G.1";
"G.9" -> "G.1";
"G.5" -> "G.2";
"G.9" -> "G.2";
"G.28" -> "G.12";
"G.14" -> "G.12";
"G.24" -> "G.22";
"G.15" -> "G.14";
"G.9" -> "G.8";
"G.19" -> "G.9";
"G.25" -> "G.9";
"G.16" -> "G.9";
"G.27" -> "G.9";
"G.12" -> "G.9";
"G.27" -> "G.25";
"G.19" -> "G.18";
"G.21" -> "G.18";
"G.25" -> "G.11";
"G.17" -> "G.11";
"G.12" -> "G.11";
"G.5" -> "G.4";
"G.8" -> "G.4";
"G.9" -> "G.4";
"G.17" -> "G.16";
}](../../_images/graphviz-3939362d2d39b13d52c4ccf9061a0dd65bad6ab8.png)
