G.57 lines parallel to the same line are parallel

I.30

Lines parallel to the same line are parallel to one another.
parallel_transitive(/ A B /, / C D /, / E F /)
given / A B / ∥ / E F /, / C D / ∥ / E F /
prove / A B / ∥ / C D /
Euclid's Elements, Book I, Proposition 30 Three parallel straight lines AB, EF, and CD intersected by a transversal GK at points G, H, and K. A G B E H F C K D
given / A B / ∥ / E F /, / C D / ∥ / E F /
construct / G K / ∩ / A B /, / E F /, / C D / → G, H, K
∵ parallel_transversal_anglesassert / A B / ∥ / E F / → < A G K ) = < G H F )
∵ parallel_transversal_angles, equal_transitiveassert / E F / ∥ / C D / → < G H F ) = < G K D ) → < A G K ) = < G K D )
∵ alternate_angles_parallel∴ < A G K ) = < G K D ) → / A B / ∥ / C D /

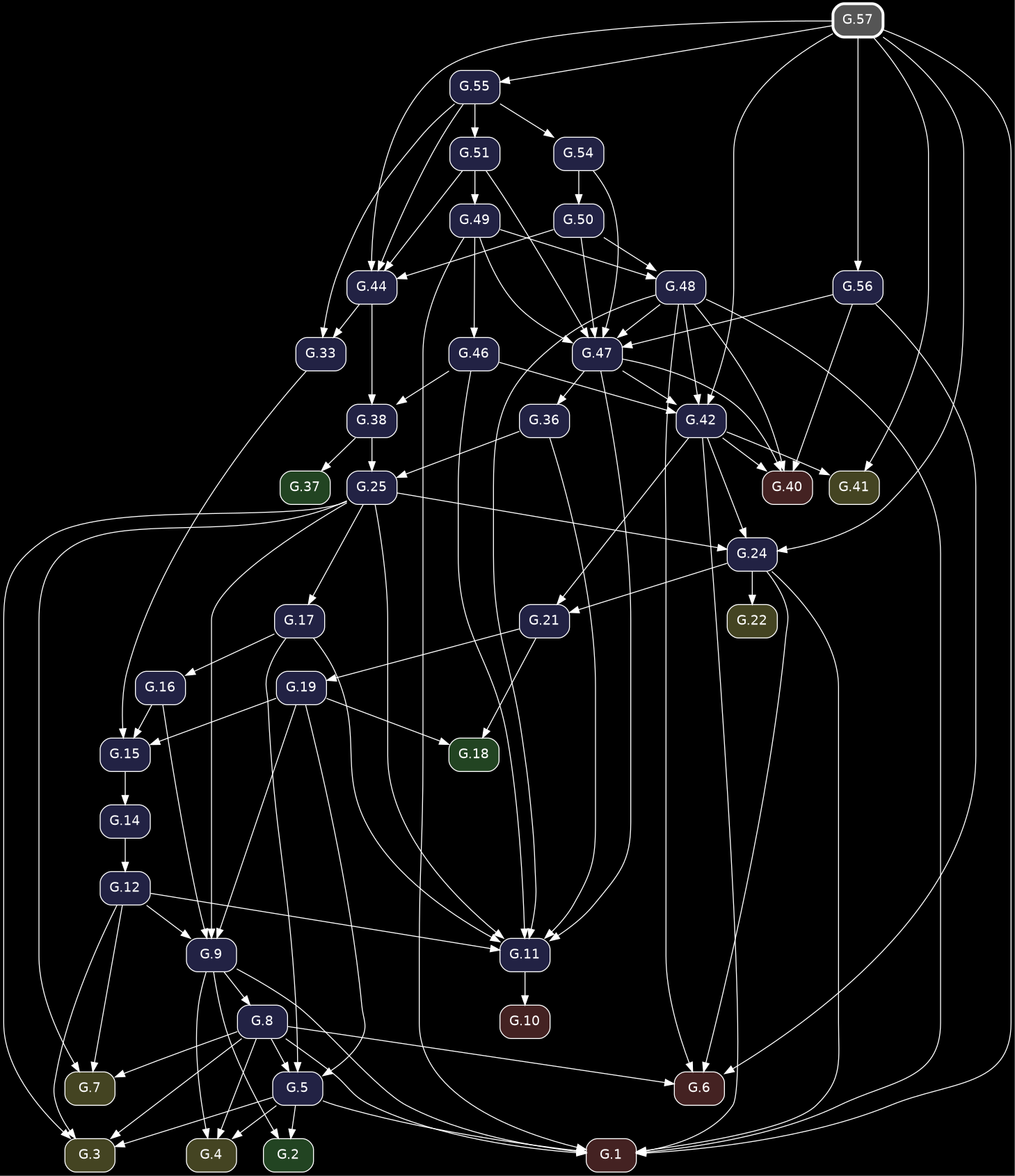

Dependency Graph

digraph { bgcolor="transparent"; node [shape=box, style="rounded,filled", fontname="Helvetica", fontsize=11, color="#d6d3cd", fontcolor="#ffffff"]; edge [color="#8c857b", fontcolor="#8c857b", arrowsize=0.75]; rankdir="TB"; "G.1" [label="G.1", tooltip="G.1 (I.def.1): A point A is that which has no part.", fillcolor="#224422", URL="../G.1/index.html", target="_top"]; "G.2" [label="G.2", tooltip="G.2 (I.def.2): A line [ A B ] is a projection of a relationship of two points A, B.", fillcolor="#224422", URL="../G.2/index.html", target="_top"]; "G.3" [label="G.3", tooltip="G.3 (I.def.3): The extremities of a segment / A B / are points A, B.", fillcolor="#224422", URL="../G.3/index.html", target="_top"]; "G.4" [label="G.4", tooltip="G.4 (I.def.4): A segment / A B / is a portion of a line [ A B ] between two points A, B on the line.", fillcolor="#224422", URL="../G.4/index.html", target="_top"]; "G.5" [label="G.5", tooltip="G.5 (I.def.5): A surface is that which has length and breadth only.", fillcolor="#224422", URL="../G.5/index.html", target="_top"]; "G.6" [label="G.6", tooltip="G.6 (I.def.6): The extremities of a surface are lines or arcs.", fillcolor="#224422", URL="../G.6/index.html", target="_top"]; "G.7" [label="G.7", tooltip="G.7 (I.def.7): A plane surface lies evenly with the lines on itself.", fillcolor="#224422", URL="../G.7/index.html", target="_top"]; "G.8" [label="G.8", tooltip="G.8 (I.def.13): A boundary is the extremity of anything.", fillcolor="#224422", URL="../G.8/index.html", target="_top"]; "G.9" [label="G.9", tooltip="G.9 (I.def.14): A figure is that which is contained by any boundary or boundaries.", fillcolor="#224422", URL="../G.9/index.html", target="_top"]; "G.10" [label="G.10", tooltip="G.10 (I.def.15): A circle ( A B ) is a plane figure contained by one arc defined by a center A and a point B establishing its defining radius / A B /, such that all segments / A B /, / A C /, / A D...", fillcolor="#224422", URL="../G.10/index.html", target="_top"]; "G.11" [label="G.11", tooltip="G.11 (I.def.16): The point A within the circle ( A B ) from which all segments / A B /, / A C / to the arc are equal is called the center of the circle.", fillcolor="#224422", URL="../G.11/index.html", target="_top"]; "G.12" [label="G.12", tooltip="G.12 (I.def.19): Rectilineal figures are contained by segments: trilateral by three, quadrilateral by four, and multilateral by more than four.", fillcolor="#224422", URL="../G.12/index.html", target="_top"]; "G.13" [label="G.13", tooltip="G.13 (I.def.20): Of trilateral figures, an equilateral triangle < A B C > has three equal sides, an isosceles triangle < D E F > has two equal sides, and a scalene triangle < G H K > has three uneq...", fillcolor="#224422", URL="../G.13/index.html", target="_top"]; "G.14" [label="G.14", tooltip="G.14 (I.post.1): Construct a segment / A B / between any two points A, B.", fillcolor="#444422", URL="../G.14/index.html", target="_top"]; "G.15" [label="G.15", tooltip="G.15 (I.post.3): Construct a circle ( A B ) with center A and defining radius point B.", fillcolor="#444422", URL="../G.15/index.html", target="_top"]; "G.16" [label="G.16", tooltip="G.16 (I.cn.1): Things equal to the same thing are equal to one another.", fillcolor="#442222", URL="../G.16/index.html", target="_top"]; "G.17" [label="G.17", tooltip="G.17 (I.1): Construct an equilateral triangle on a given segment.", fillcolor="#222244", URL="../G.17/index.html", target="_top"]; "G.18" [label="G.18", tooltip="G.18 (I.post.2): Extend a segment / A B / continuously along a line [ A B ] to / B C /.", fillcolor="#444422", URL="../G.18/index.html", target="_top"]; "G.19" [label="G.19", tooltip="G.19 (I.cn.3): If equals are subtracted from equals, the remainders are equal.", fillcolor="#442222", URL="../G.19/index.html", target="_top"]; "G.20" [label="G.20", tooltip="G.20 (I.2): Construct at a given point a segment equal to a given segment.", fillcolor="#222244", URL="../G.20/index.html", target="_top"]; "G.21" [label="G.21", tooltip="G.21 (I.3): Cut off from the greater of two unequal segments a segment equal to the less.", fillcolor="#222244", URL="../G.21/index.html", target="_top"]; "G.22" [label="G.22", tooltip="G.22 (I.def.8): A plane angle is the inclination to one another of two lines or arcs in a plane that meet and do not lie on the same line.", fillcolor="#224422", URL="../G.22/index.html", target="_top"]; "G.23" [label="G.23", tooltip="G.23 (I.cn.4): Things / A B /, / D E / that coincide with one another are equal to one another.", fillcolor="#442222", URL="../G.23/index.html", target="_top"]; "G.24" [label="G.24", tooltip="G.24 (I.4): Triangles with two sides and the included angle equal are congruent (SAS).", fillcolor="#222244", URL="../G.24/index.html", target="_top"]; "G.25" [label="G.25", tooltip="G.25 (I.5): In an isosceles triangle, the angles at the base are equal, and if the equal sides are extended, the angles under the base are equal.", fillcolor="#222244", URL="../G.25/index.html", target="_top"]; "G.26" [label="G.26", tooltip="G.26 (I.cn.5): The whole is greater than the part.", fillcolor="#442222", URL="../G.26/index.html", target="_top"]; "G.28" [label="G.28", tooltip="G.28 (I.7): On the same segment and on the same side, there cannot be constructed two distinct triangles with both pairs of conterminous sides equal.", fillcolor="#222244", URL="../G.28/index.html", target="_top"]; "G.29" [label="G.29", tooltip="G.29 (I.8): Triangles with all three corresponding sides equal have their corresponding angles equal (SSS).", fillcolor="#222244", URL="../G.29/index.html", target="_top"]; "G.30" [label="G.30", tooltip="G.30 (I.def.9): A rectilineal angle is contained by two segments or lines.", fillcolor="#224422", URL="../G.30/index.html", target="_top"]; "G.31" [label="G.31", tooltip="G.31 (I.9): Bisect a given angle.", fillcolor="#222244", URL="../G.31/index.html", target="_top"]; "G.32" [label="G.32", tooltip="G.32 (I.10): Bisect a given segment.", fillcolor="#222244", URL="../G.32/index.html", target="_top"]; "G.33" [label="G.33", tooltip="G.33 (I.def.10): When a segment standing on a line makes the adjacent angles equal, each of the equal angles is a right angle, and the standing segment is perpendicular to the line.", fillcolor="#224422", URL="../G.33/index.html", target="_top"]; "G.34" [label="G.34", tooltip="G.34 (I.11): Construct a segment at right angles to a given line from a given point on it.", fillcolor="#222244", URL="../G.34/index.html", target="_top"]; "G.36" [label="G.36", tooltip="G.36 (I.cn.2): If equals are added to equals, the wholes are equal.", fillcolor="#442222", URL="../G.36/index.html", target="_top"]; "G.37" [label="G.37", tooltip="G.37 (I.13): A segment standing on a line makes either two right angles or adjacent angles summing to two right angles.", fillcolor="#222244", URL="../G.37/index.html", target="_top"]; "G.38" [label="G.38", tooltip="G.38 (I.post.4): All right angles are equal.", fillcolor="#444422", URL="../G.38/index.html", target="_top"]; "G.40" [label="G.40", tooltip="G.40 (I.15): Intersecting lines make their vertical angles equal.", fillcolor="#222244", URL="../G.40/index.html", target="_top"]; "G.41" [label="G.41", tooltip="G.41 (I.16): In any triangle, if one side is extended, the exterior angle is greater than either opposite interior angle.", fillcolor="#222244", URL="../G.41/index.html", target="_top"]; "G.52" [label="G.52", tooltip="G.52 (I.def.23): Parallel lines are lines in the same plane which, extended indefinitely in both directions, do not meet.", fillcolor="#224422", URL="../G.52/index.html", target="_top"]; "G.53" [label="G.53", tooltip="G.53 (I.27): If a transversal cutting two lines makes the alternate interior angles equal, the lines are parallel.", fillcolor="#222244", URL="../G.53/index.html", target="_top"]; "G.55" [label="G.55", tooltip="G.55 (I.post.5): Two lines intersected by a transversal with interior angles on one side summing to less than two right angles meet on that side.", fillcolor="#444422", URL="../G.55/index.html", target="_top"]; "G.56" [label="G.56", tooltip="G.56 (I.29): A transversal cutting parallel lines makes alternate interior angles equal, exterior and opposite interior angles equal, and same-side interior angles supplementary.", fillcolor="#222244", URL="../G.56/index.html", target="_top"]; "G.57" [label="G.57", tooltip="G.57 (I.30): Lines parallel to the same line are parallel to one another.", penwidth=2.5, color="#e8b85a", fillcolor="#4a453b", URL="index.html", target="_top"]; "G.2" -> "G.1"; "G.3" -> "G.1"; "G.4" -> "G.1"; "G.10" -> "G.1"; "G.11" -> "G.1"; "G.14" -> "G.1"; "G.15" -> "G.1"; "G.17" -> "G.1"; "G.20" -> "G.1"; "G.21" -> "G.1"; "G.24" -> "G.1"; "G.25" -> "G.1"; "G.28" -> "G.1"; "G.29" -> "G.1"; "G.31" -> "G.1"; "G.32" -> "G.1"; "G.34" -> "G.1"; "G.37" -> "G.1"; "G.40" -> "G.1"; "G.3" -> "G.2"; "G.4" -> "G.2"; "G.6" -> "G.2"; "G.7" -> "G.2"; "G.18" -> "G.2"; "G.22" -> "G.2"; "G.30" -> "G.2"; "G.33" -> "G.2"; "G.34" -> "G.2"; "G.37" -> "G.2"; "G.40" -> "G.2"; "G.52" -> "G.2"; "G.53" -> "G.2"; "G.55" -> "G.2"; "G.56" -> "G.2"; "G.57" -> "G.2"; "G.4" -> "G.3"; "G.6" -> "G.3"; "G.8" -> "G.3"; "G.20" -> "G.3"; "G.28" -> "G.3"; "G.29" -> "G.3"; "G.7" -> "G.4"; "G.10" -> "G.4"; "G.11" -> "G.4"; "G.12" -> "G.4"; "G.14" -> "G.4"; "G.17" -> "G.4"; "G.18" -> "G.4"; "G.20" -> "G.4"; "G.21" -> "G.4"; "G.22" -> "G.4"; "G.24" -> "G.4"; "G.25" -> "G.4"; "G.28" -> "G.4"; "G.29" -> "G.4"; "G.30" -> "G.4"; "G.31" -> "G.4"; "G.32" -> "G.4"; "G.33" -> "G.4"; "G.34" -> "G.4"; "G.37" -> "G.4"; "G.40" -> "G.4"; "G.41" -> "G.4"; "G.52" -> "G.4"; "G.53" -> "G.4"; "G.55" -> "G.4"; "G.56" -> "G.4"; "G.57" -> "G.4"; "G.6" -> "G.5"; "G.7" -> "G.5"; "G.10" -> "G.6"; "G.10" -> "G.7"; "G.22" -> "G.7"; "G.52" -> "G.7"; "G.9" -> "G.8"; "G.10" -> "G.9"; "G.12" -> "G.9"; "G.11" -> "G.10"; "G.15" -> "G.10"; "G.17" -> "G.10"; "G.20" -> "G.10"; "G.21" -> "G.10"; "G.15" -> "G.11"; "G.17" -> "G.11"; "G.20" -> "G.11"; "G.21" -> "G.11"; "G.13" -> "G.12"; "G.17" -> "G.12"; "G.20" -> "G.12"; "G.24" -> "G.12"; "G.25" -> "G.12"; "G.28" -> "G.12"; "G.29" -> "G.12"; "G.31" -> "G.12"; "G.32" -> "G.12"; "G.34" -> "G.12"; "G.41" -> "G.12"; "G.53" -> "G.12"; "G.17" -> "G.13"; "G.25" -> "G.13"; "G.17" -> "G.14"; "G.20" -> "G.14"; "G.25" -> "G.14"; "G.28" -> "G.14"; "G.31" -> "G.14"; "G.34" -> "G.14"; "G.41" -> "G.14"; "G.17" -> "G.15"; "G.20" -> "G.15"; "G.21" -> "G.15"; "G.17" -> "G.16"; "G.20" -> "G.16"; "G.21" -> "G.16"; "G.37" -> "G.16"; "G.40" -> "G.16"; "G.56" -> "G.16"; "G.57" -> "G.16"; "G.20" -> "G.17"; "G.31" -> "G.17"; "G.32" -> "G.17"; "G.34" -> "G.17"; "G.20" -> "G.18"; "G.25" -> "G.18"; "G.41" -> "G.18"; "G.53" -> "G.18"; "G.20" -> "G.19"; "G.25" -> "G.19"; "G.40" -> "G.19"; "G.21" -> "G.20"; "G.25" -> "G.21"; "G.31" -> "G.21"; "G.34" -> "G.21"; "G.41" -> "G.21"; "G.24" -> "G.22"; "G.25" -> "G.22"; "G.28" -> "G.22"; "G.29" -> "G.22"; "G.30" -> "G.22"; "G.31" -> "G.22"; "G.32" -> "G.22"; "G.33" -> "G.22"; "G.34" -> "G.22"; "G.37" -> "G.22"; "G.40" -> "G.22"; "G.41" -> "G.22"; "G.53" -> "G.22"; "G.55" -> "G.22"; "G.56" -> "G.22"; "G.57" -> "G.22"; "G.24" -> "G.23"; "G.29" -> "G.23"; "G.25" -> "G.24"; "G.32" -> "G.24"; "G.41" -> "G.24"; "G.28" -> "G.25"; "G.28" -> "G.26"; "G.41" -> "G.26"; "G.29" -> "G.28"; "G.31" -> "G.29"; "G.34" -> "G.29"; "G.31" -> "G.30"; "G.32" -> "G.31"; "G.41" -> "G.32"; "G.34" -> "G.33"; "G.37" -> "G.33"; "G.38" -> "G.33"; "G.40" -> "G.33"; "G.55" -> "G.33"; "G.56" -> "G.33"; "G.37" -> "G.34"; "G.37" -> "G.36"; "G.56" -> "G.36"; "G.40" -> "G.37"; "G.56" -> "G.37"; "G.40" -> "G.38"; "G.41" -> "G.40"; "G.56" -> "G.40"; "G.53" -> "G.41"; "G.53" -> "G.52"; "G.56" -> "G.52"; "G.57" -> "G.52"; "G.57" -> "G.53"; "G.56" -> "G.55"; "G.57" -> "G.56"; }

Required for

G.74, G.97, G.159, G.237, G.240, G.241, G.243, G.407, G.408, G.413, G.414, G.419, G.420, G.434, G.437, G.438, G.443, G.444, G.448, G.449, G.451, G.458, G.459, G.464, G.465, G.480, G.481, G.486, G.487, G.491, G.492, G.494, G.495, G.542, G.543, G.544, G.547, G.559, G.560, G.563, G.565, G.570, G.571, G.572, G.573, G.577, G.578, G.589, G.597, G.601
